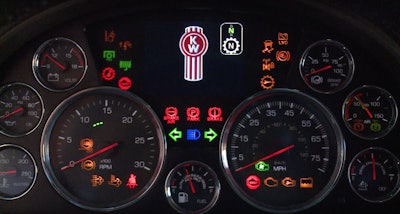

Modern instrument clusters, such as this one illuminated during the ignition sequence in a 2019 Freightliner Cascadia, warn of problems with the engine, brakes, emissions systems and other components.Modern instrument clusters, such as this one illuminated during the ignition sequence in a 2019 Freightliner Cascadia, warn of problems with the engine, brakes, emissions systems and other components.

Advancements in engine and emissions technology over the last decade have complicated the challenge of staying on top of dashboard warning lights.

Owners of trucks newer than the 2007 model year have been subject to potential diesel particulate filter problems. Other issues came with the selective catalytic reduction system introduced in 2010 model trucks.

Truck and engine makers have made progress in stabilizing these emissions-related systems, says Jeff Rogers, a Ryder maintenance director. Still, their malfunctions are among the most common triggers of dashboard warning lamps.

“It’s extremely important to know what these different lights mean because of how many there are and what the combinations of certain lights can mean,” says David Perry, corporate technical trainer for Transervice.

If you don’t know, the simplest way to find out is to check the owner’s manual. It also should help you decide how quickly the warning needs to be addressed.

“Trucks a number of years ago maybe had a couple hundred fault codes,” says Mike Hasinec, vice president of maintenance for Penske Truck Leasing. “There are probably a thousand or more on a typical Class 8 truck today. Of those thousands of codes, there are probably about 50 that say this is where you need to take a quick course of action. Most lights don’t mean you have to pull over immediately.”

Some common warning lights are Check Engine, Stop Engine, Malfunction Indicator Lamp (MIL) and Diesel Particulate Filter (DPF).

An amber light indicates a need to address a problem soon, while a red light indicates an emergency.An amber light indicates a need to address a problem soon, while a red light indicates an emergency.

The icons used for most warning lights are similar. The MIL and Check Engine lights look the same for a Cummins engine – an amber figure of an engine – except that the Check Engine light adds a wrench. A Detroit engine’s Check Engine light might say “Check Engine” or show an engine figure with the word “Check” across it, while the MIL light is just an engine.

“By far, the most common light is the MIL indicator,” Perry says. “It deals with all emissions related problems. When regeneration systems first came into play, it was a lot more prevalent, but now we’re at the point where those problems have largely gone away, but they’re still there.”

A rule of thumb is that if a light is amber (similar to yellow, as in a caution light), the truck usually can be driven until the end of a shift. If it’s an amber MIL, the truck needs to be checked soon because it may derate if left unchecked. A red light indicates the driver should pull off for immediate service.

The common Check Engine light usually means the engine has gone through its self-diagnostics and needs to be checked soon. The truck usually can be driven until the end of a shift, but not much more.

Sometimes lights come on in a combination to help the driver determine the root problem.

“Lamps that refer to specific conditions, such as oil pressure or fuel pressure, mean that the measured characteristic is not within acceptable limits,” says Patrick Dean, Kenworth chief engineer. “The driver should seek service soon. If the characteristics reach a maximum or minimum threshold, a red Stop Engine light will illuminate.”

Hasinec says many drivers have become familiar with the DPF light over the last decade. “It’s still a common call we get in our 24/7 call center,” he says. If a DPF light is ignored while driving, “the engine will derate and shut down.”

The DPF light means the system needs to regenerate. When it’s flashing, the regen must be done while parked. A solid DPF light means you can do a parked regen or a passive one.

Rogers says to accomplish a passive regen, the exhaust needs to be at a specific temperature, which usually can be attained at highway speed. If the temperature is maintained for about 20 to 40 minutes, the regen will complete, and the light will go off.

For the parked regen, ensure nothing is near the stacks where the heated exhaust will emerge. Follow your truck’s instructions to begin the process. The engine speed will increase enough to boost exhaust temperatures and complete the regen. As with a passive regen, it takes about 20 to 40 minutes.

For either type of regen, a High Exhaust System Temperature lamp lets you know the exhaust temperature is high enough for the regen. It will go off when the regen is completed.

“The red Stop Engine lamp is the most urgent lamp,” Dean says. “In Kenworth trucks, an audible tone will also sound. It means the truck has a serious engine system problem and that the vehicle should be brought to a safe stop and turned off immediately.”

If the Stop Engine light is flashing, it means the driver has 30 to 60 seconds to park before the engine shuts down. Ignoring a Stop Engine lamp could result in a blown engine and damage to the turbos. “A new heavy-duty diesel engine today costs between $35,000 and $40,000,” Hasinec says.

The Stop Engine light often is accompanied by other indicators, such as the DPF or DEF lights. A DEF light by itself indicates that the diesel exhaust fluid level is low. If the light is accompanied by the Stop Engine light, it means the DEF level is critically low, often because the fuel tank was refilled but the DEF tank wasn’t. When this happens, the engine will be limited to 5 mph.

Perry says a driver usually can go about 250 miles before the truck derates from a DEF warning and must stop. “More than likely, the tech can’t fix the problem on the side of the road, which results in a hefty tow bill,” he adds. “We see that quite a bit.”

A faulty sensor can cause a lamp to illuminate when it shouldn’t, though Perry says that problem isn’t so common anymore. When it does happen, it should be fixed so it’s clear if a warning is merited or not.

A broken or chafed wire is often the culprit behind improper fault codes, Hasinec says. It’s common today to see a multiplex wiring harness where a single wire is used for multiple things, which makes locating the problematic wire like finding “a needle in a haystack,” he says.

Clues about a malfunctioning light can help a technician — conditions such as speed or steering that trigger it, frequency of it turning off and on, etc. “Perhaps it happens when going around a turn or hitting a hard bump,” Hasinec says. “That can trigger a thought process with a technician that can help lead them to what may be causing the faulty sensor.”

Other common warning lights are Anti-Lock Braking System (ABS), Water In Fuel, High Coolant Temperature, Low Air Pressure, Low Engine Oil Pressure and Transmission Fluid Level. Newer trucks with advanced technologies have lights for functions such as Active Brake Assist and Lane Departure Warning.

“The ABS light could be as simple as a sensor on the brakes – typically something minute – but also something you need to get looked at,” Hasinec says. “There’s no need to immediately pull over for an ABS light.”
